由任接頭

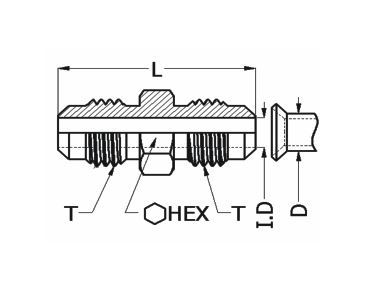

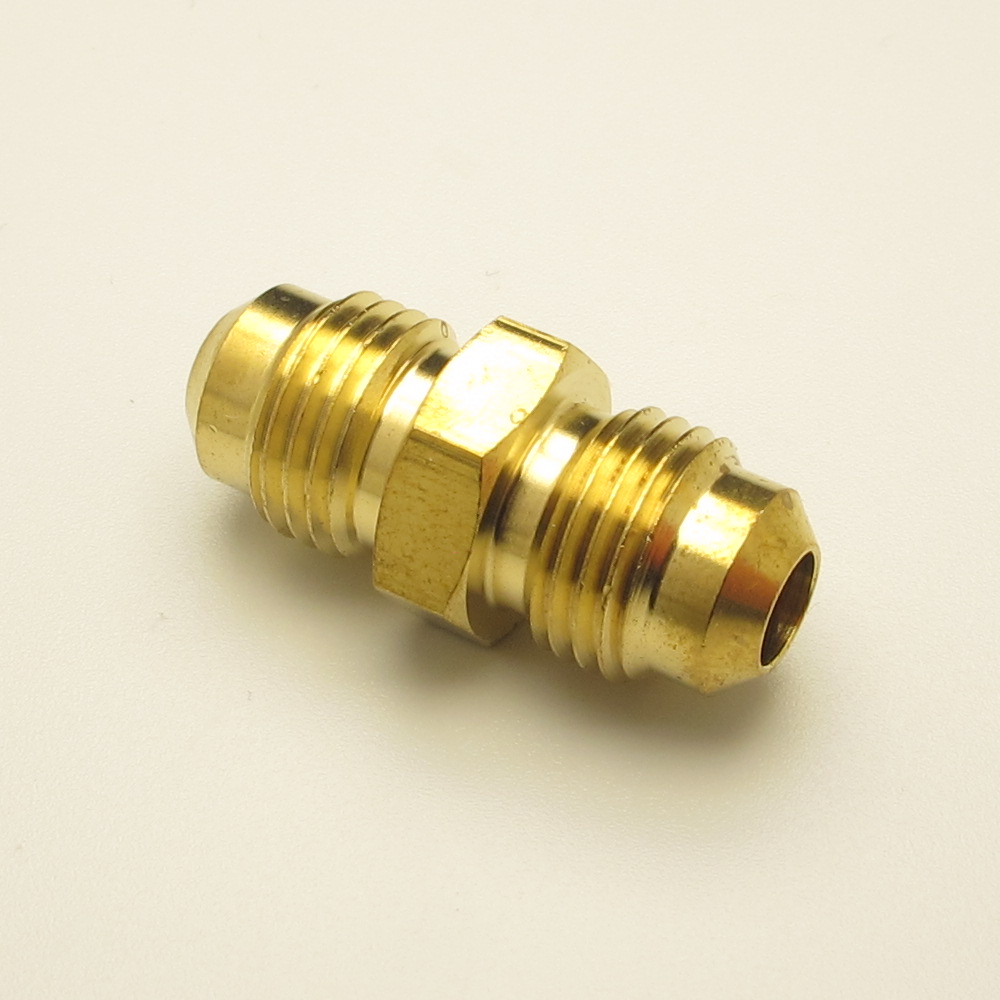

H06 由任接頭 Union
| 產品編號 | 適用管徑 D | 直牙 T | L | HEX | I.D |
| Part No. | TubeSize D | Thread T | |||
| H06-C2 | 1/4 | 7/16-20 | 29 | 12 | 4.8 |
| H06-C25 | 5/16 | 1/2-20 | 31 | 14 | 5.5 |
| H06-C3 | 3/8 | 9/16-18 | 33 | 15 | 7.2 |
| H06-C3-1 | 3/8 | 5/8-18 | 35 | 17 | 7.2 |
| H06-C4 | 1/2 | 3/4-16 | 42 | 21 | 10.3 |
| H06-C5 | 5/8 | 7/8-14 | 44 | 23 | 12.7 |
| H06-C6 | 3/4 | 1"1/16-14 | 50 | 27 | 15.9 |
