由任接頭

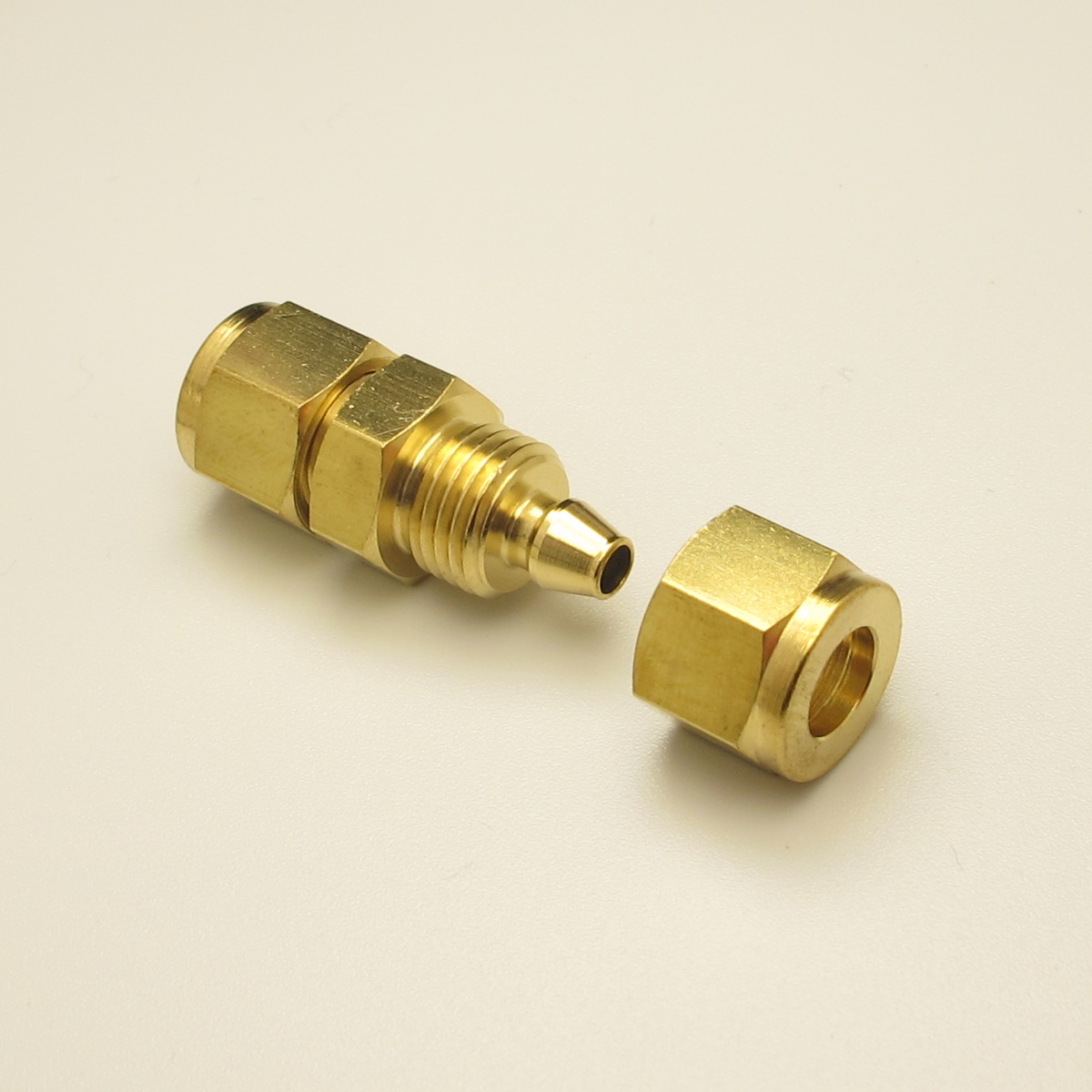

N01 由任接頭-公制 UNION

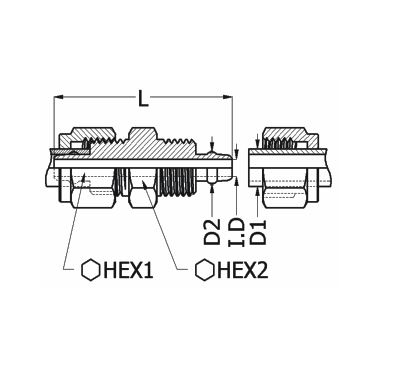

| 產品編號 | 適用管徑D1 | 直牙T | D2 | L | SW1 | SW2 | I.D. |
| Part No. | Tube Size D1 | Thread T | |||||
| N01-C04 | 4 | M7*1.0 | 3.75 | 25 | 9 | 8 | 1.8 |
| N01-C06 | 6 | M10-24 | 5.55 | 31 | 12 | 12 | 3 |
| N01-C25 | 8 | 7/16-24 | 6.9 | 31 | 14 | 12 | 4.5 |
| N01-C10 | 10 | 1/2-24 | 8.25 | 35 | 15 | 12.7 | 5.2 |
| N01-C12 | 12 | M17-24 | 10.1 | 40 | 19 | 17 | 7 |
N01 由任接頭-英制 UNION
| 產品編號 | 適用管徑D1 | 直牙T | D2 | L | SW1 | SW2 | I.D. |
| Part No. | Tube Size D1 | Thread T | |||||
| N01-C2 | 1/4 | M10-24 | 5.55 | 31 | 12 | 12 | 3 |
| N01-C25 | 5/16 | 7/16-24 | 6.9 | 31 | 14 | 12 | 4.5 |
| N01-C3 | 3/8 | 1/2-24 | 8.25 | 35 | 15 | 12.7 | 5.2 |
| N01-C4 | 1/2 | M17-24 | 10.7 | 39 | 19 | 17 | 8 |
