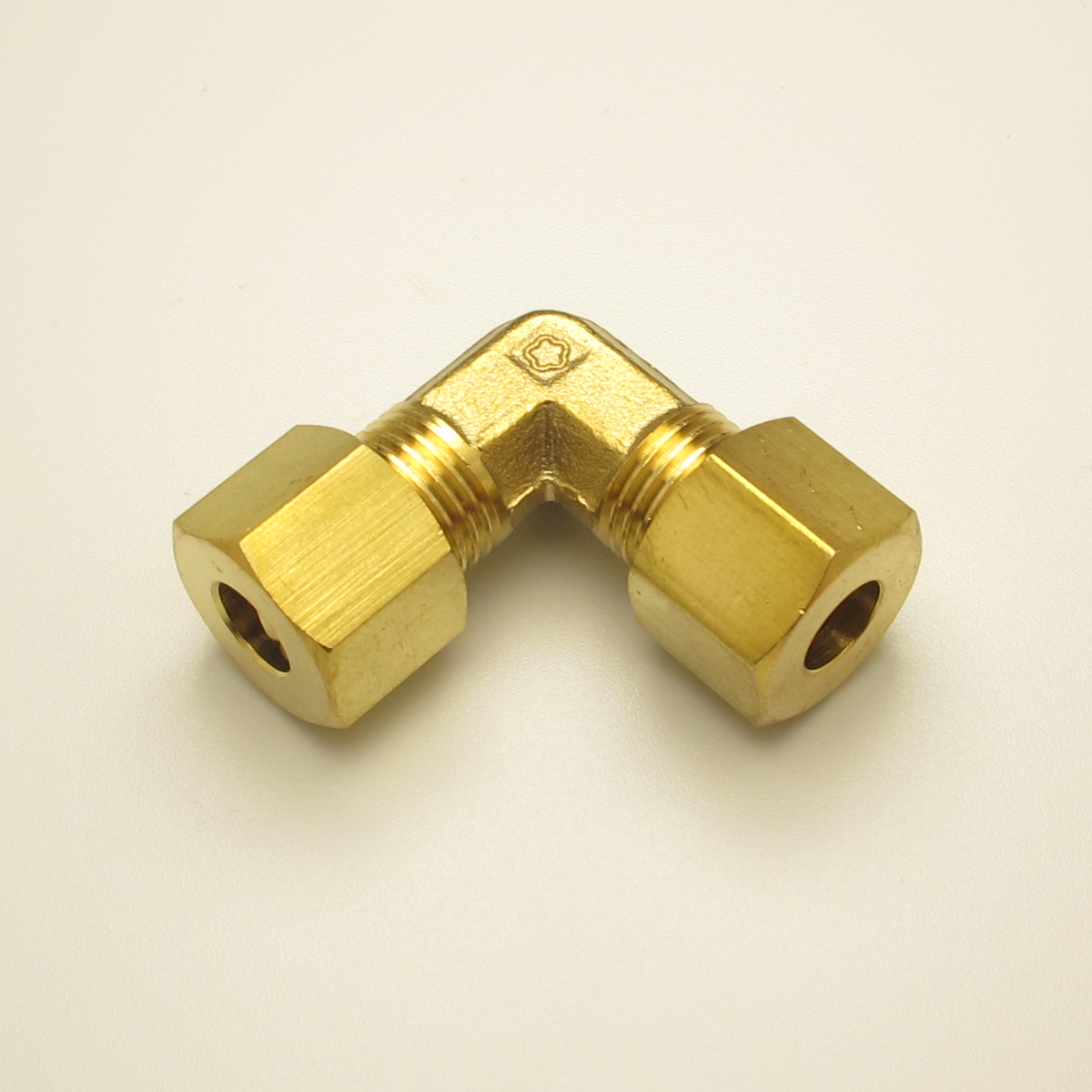

由任彎頭

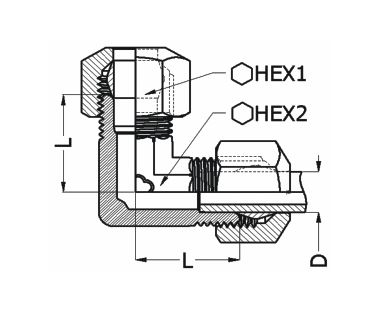

S03 由任彎頭-公制 UNION ELBOW
| 產品編號 | 適用管徑D | 直牙 | L | SW1 | SW2 |
| Part No. | Tube Size D | Thread | |||
| S03-L06 | 6 | 7/16-24 | 17 | 14 | 9.5 |
| S03-L25 | 8 | 1/2-24 | 19.5 | 16 | 11 |
| S03-L10 | 10 | 9/16-24 | 21.5 | 17 | 13 |
| S03-L12 | 12 | 11/16-20 | 23 | 21 | 13 |
| S03-LM15 | 15 | 13/16-18 | 29.7 | 24 | 17 |
S03 由任彎頭-英制 UNION ELBOW
| 產品編號 | 適用管徑D | 直牙 | L | SW1 | SW2 |
| Part No. | Tube Size D | Thread | |||
| S03-L1 | 1/8 | 5/16-24 | 15 | 9.5 | 9.5 |
| S03-L2 | 1/4 | 7/16-24 | 17 | 14 | 9.5 |
| S03-L25 | 5/16 | 1/2-24 | 19.5 | 16 | 11 |
| S03-L3 | 3/8 | 9/16-24 | 21.5 | 17 | 13 |
| S03-L4 | 1/2 | 11/16-20 | 23 | 21 | 13 |
| S03-L5 | 5/8 | 13/16-18 | 29.7 | 24 | 17 |
| S03-L6 | 3/4 | 1"-18 | 27.9 | 30 | 21 |
