內牙插心接頭

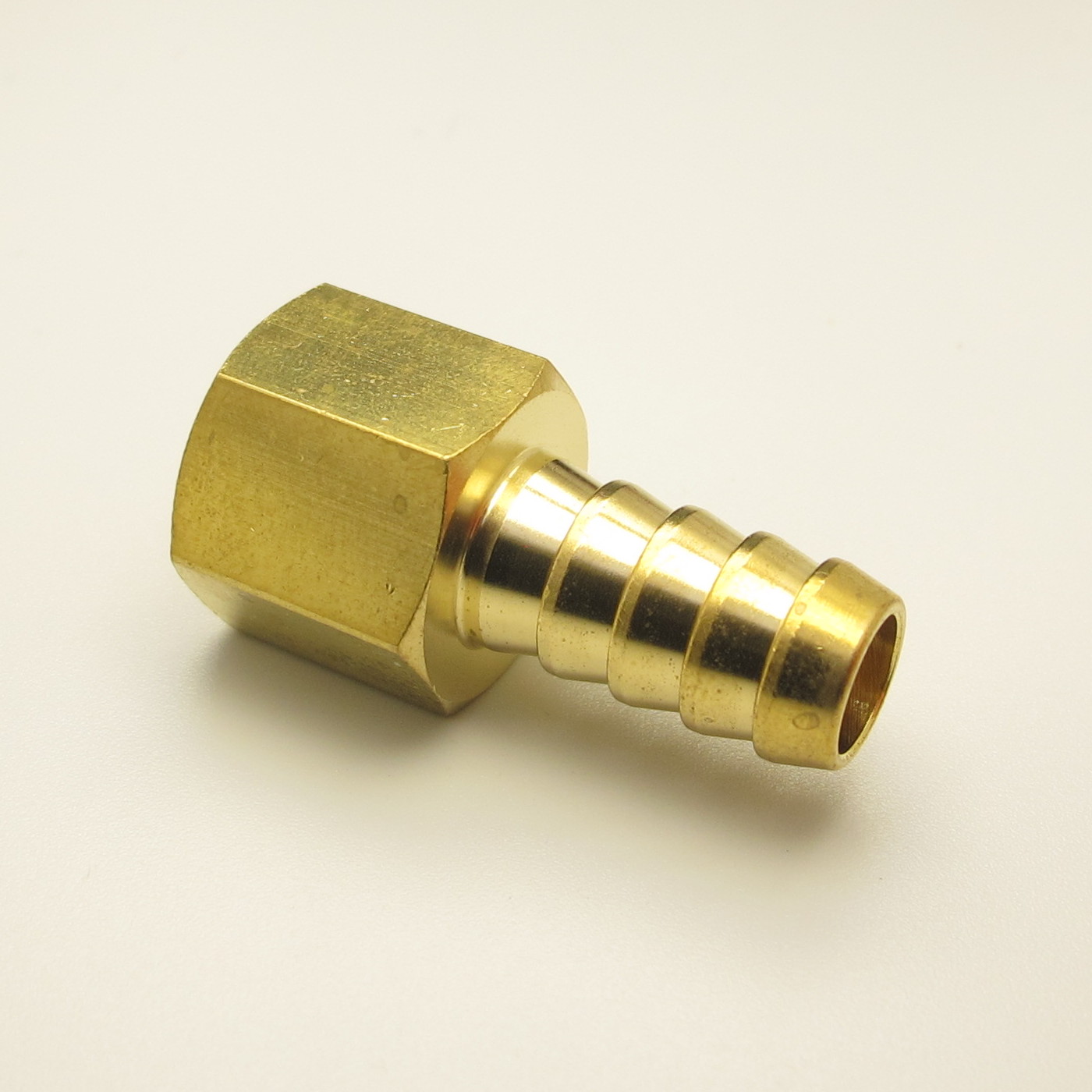

E08 內牙插心接頭 Female Hose-Barb Connector

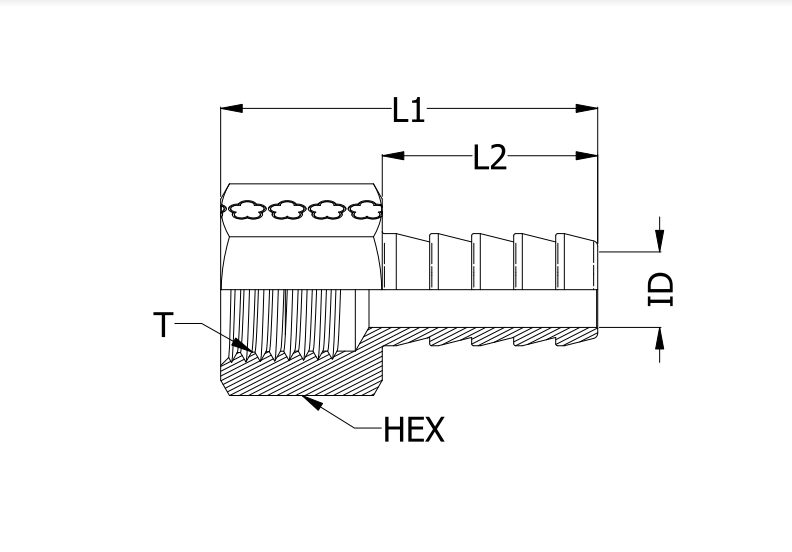

| 產品編號 | 內管牙 T1 | 適用管徑D | L1 | L2 | SW | I.D |
| Part No. | Pipe Thread T1 | Tube Size D | ||||
| E08-CM102 | 1/8 | 1/4 | 32 | 20 | 12 | 4 |
| E08-CM1025 | 1/8 | 5/16 | 32 | 20 | 12 | 5.5 |
| E08-CM103 | 1/8 | 3/8 | 32 | 20 | 12 | 7 |
| E08-CM2015 | 1/4 | 3/16 | 27 | 12 | 17 | 3 |
| E08-CM202 | 1/4 | 1/4 | 35 | 20 | 17 | 4 |
| E08-CM2025 | 1/4 | 5/16 | 35 | 20 | 17 | 5.5 |
| E08-CM203 | 1/4 | 3/8 | 35 | 20 | 17 | 7 |
| E08-CM204 | 1/4 | 1/2 | 35 | 20 | 17 | 9.5 |
| E08-CM302 | 3/8 | 1/4 | 35 | 20 | 21 | 4 |
| E08-CM3025 | 3/8 | 5/16 | 35 | 20 | 21 | 5.5 |
| E08-CM303 | 3/8 | 3/8 | 35 | 20 | 21 | 7 |
| E08-CM304 | 3/8 | 1/2 | 35 | 20 | 21 | 9.5 |
| E08-CM4025 | 1/2 | 5/16 | 38 | 20 | 24 | 5.5 |
| E08-CM403 | 1/2 | 3/8 | 38 | 20 | 24 | 7 |
| E08-CM404 | 1/2 | 1/2 | 38 | 20 | 24 | 9.5 |
