內牙四通

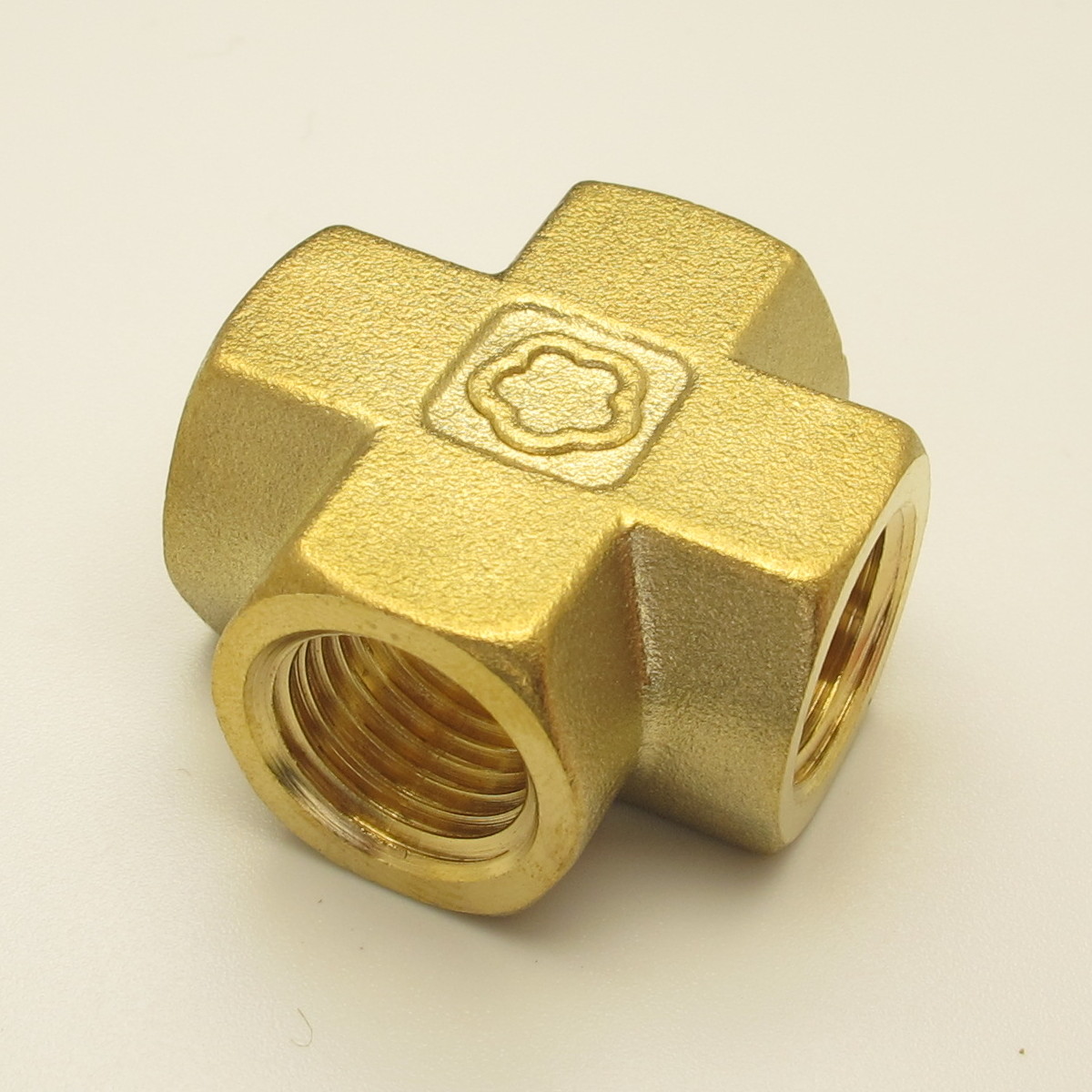

A10 內牙四通 Cross

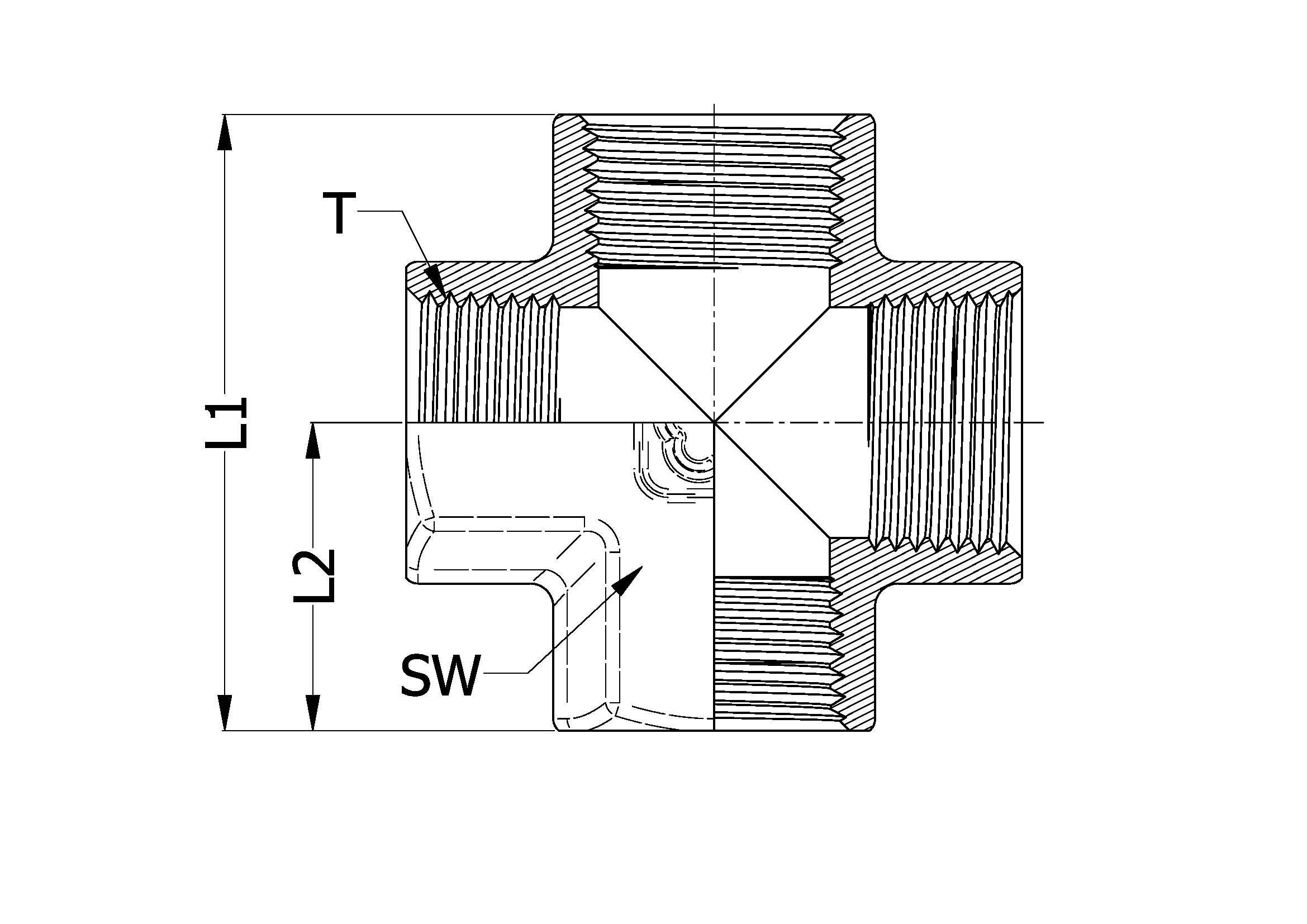

| 產品編號 | 管牙 T | L1 | L2 | HEX |
| Part No. | Pipe Thread T | |||
| A10-F1 | 1/8 | 26.5 | 13.25 | 14 |
| A10-F2 | 1/4 | 30 | 15 | 17.5 |
| A10-F3 | 3/8 | 40 | 20 | 21 |
| A10-F4 | 1/2 | 49 | 24.5 | 25 |
| 產品編號 | 管牙 T | L1 | L2 | HEX | ID |
| Part No. | Pipe Thread T | ||||
| A10-S1 | 1/8 | 26 | 13 | 13 | 14 |
| A10-S2 | 1/4 | 30 | 15 | 17 | 18 |
| A10-S3 | 3/8 | 36 | 18 | 21 | 22 |
| A10-S4 | 1/2 | 43 | 21.5 | 25.4 | 27 |
